PPA-Dun
Fantasy Baseball Draft Kit

CSE416 Software Engineering In Progress Feb 2026 - Present
GitHub Live Site
Cloud 1 Backend 2 Frontend 1

CSE416 Software Engineering course project. Fantasy baseball draft recommendation service. Designed and evolved the cloud infrastructure from a minimal dev setup to a production-grade GKE environment with GitOps CI/CD.

Architecture Evolution

→
GCP Cloud CDN HTTPS LB Cloud DNS Docker Nginx VPC Peering GitHub Actions

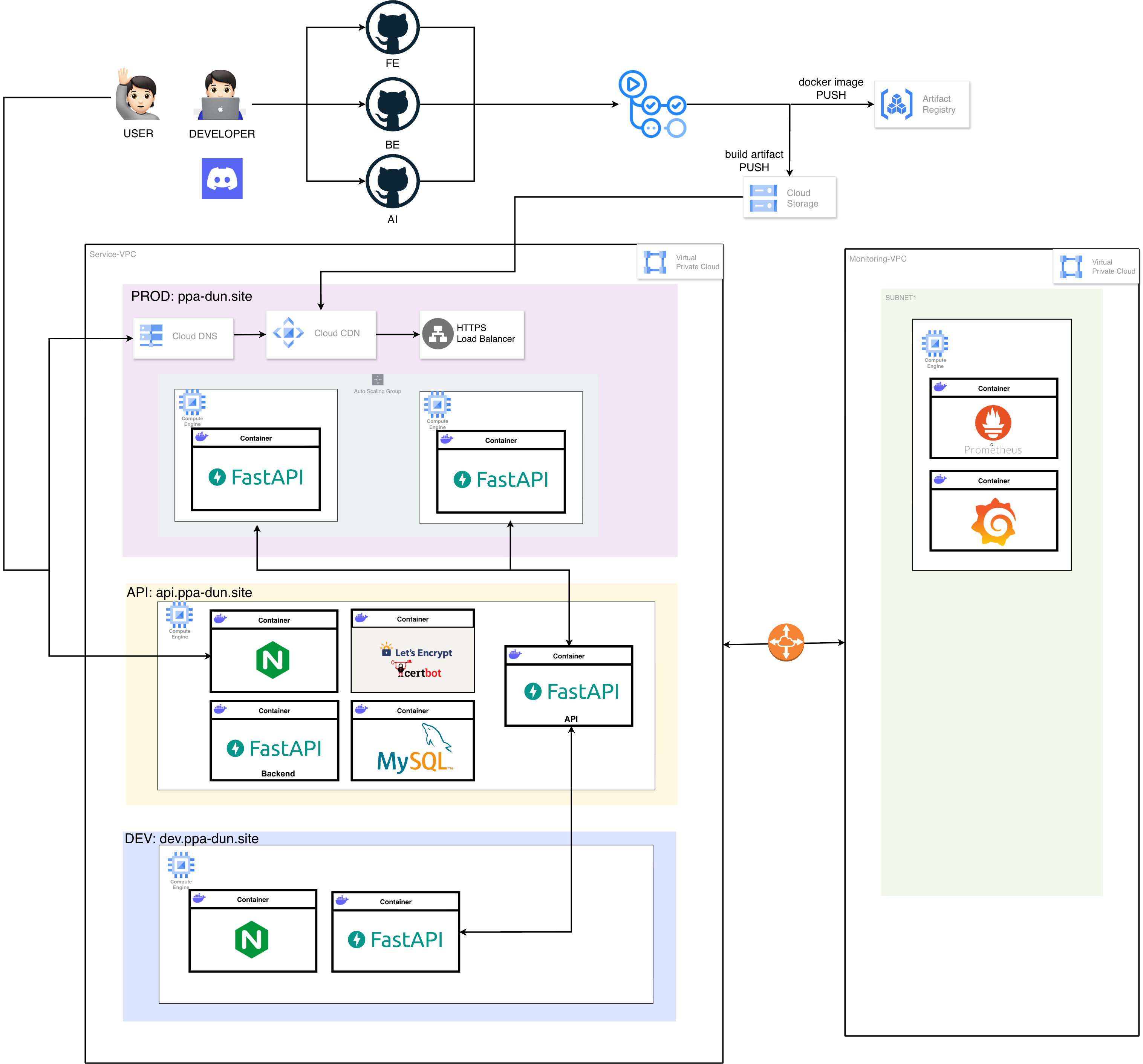

v1 Full Architecture
Infrastructure Design

Designed the infrastructure with 2 VPCs connected via VPC Peering — separating application services from monitoring to isolate observability traffic.

System VPC

  • DEV subnet 10.10.0.0/16 → dev.ppa-dun.site
    Minimal MVP setup. Single VM with Nginx + Docker (FastAPI + MySQL). No HTTPS, no CDN, HTTP only. Fast iteration for feature development.
  • PROD subnet 10.20.0.0/16 → ppa-dun.site
    Production environment with Cloud CDN for frontend caching, Google-managed HTTPS certificate, Global Load Balancer with URL-based routing, and auto-scaling up to 2 instances.
  • API subnet 10.30.0.0/16 → api.ppa-dun.site
    Shared API server with Nginx + Let's Encrypt SSL + FastAPI + MySQL. Serves both frontend and external API consumers.

Monitoring VPC

  • Monitoring subnet 10.40.0.0/16
    Isolated VPC for Prometheus + Grafana. Connected to System VPC via VPC Peering for scraping application metrics without exposing monitoring endpoints.

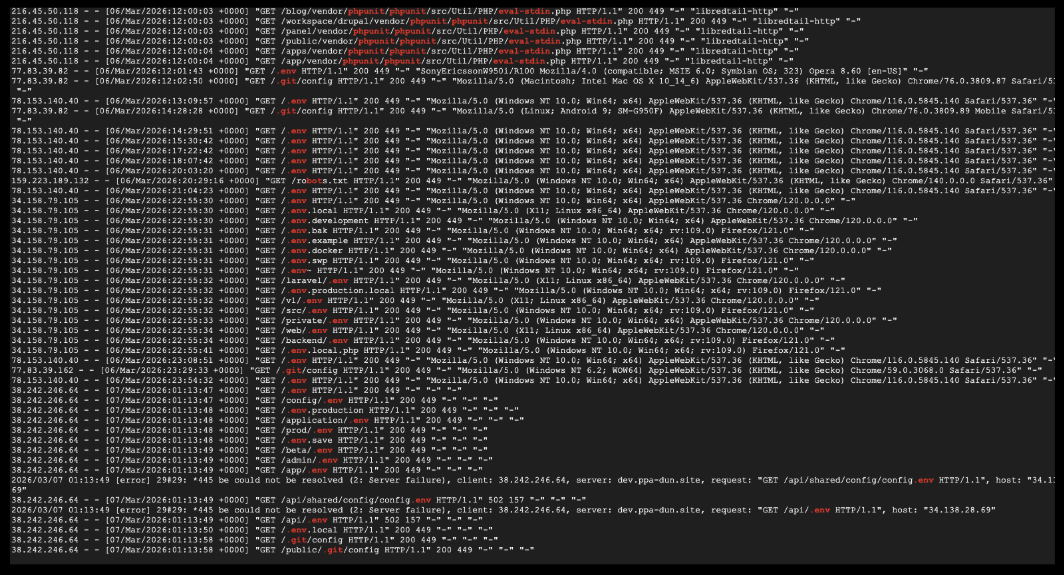

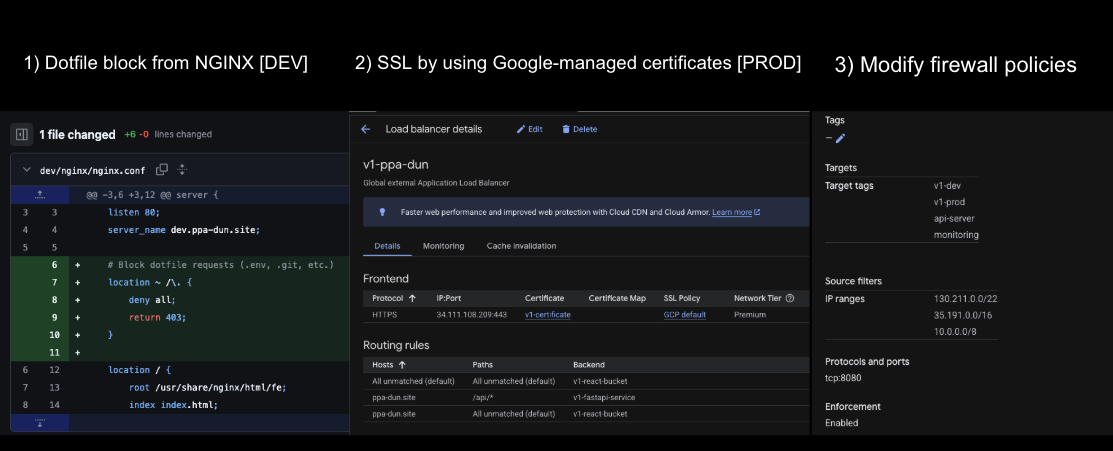

Why DEV → PROD? Nginx scanning attacks detected — PHP RCE, .env probing, Git repo scanning, bot crawlers
GKE Autopilot Artifact Registry Secret Manager Cloud DNS Terraform Helm ArgoCD External Secrets Workload Identity

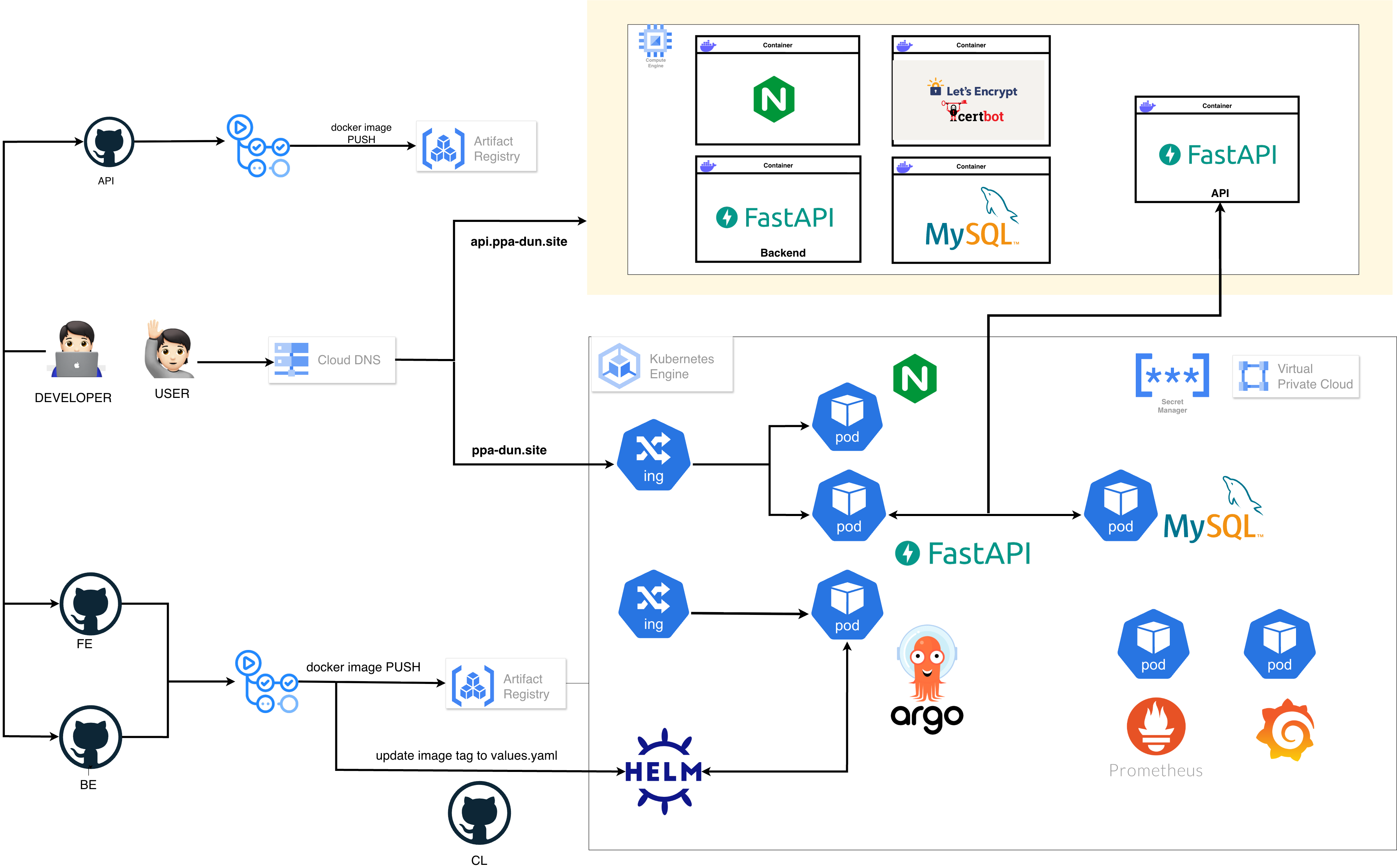

v2 GKE Architecture

Troubleshooting

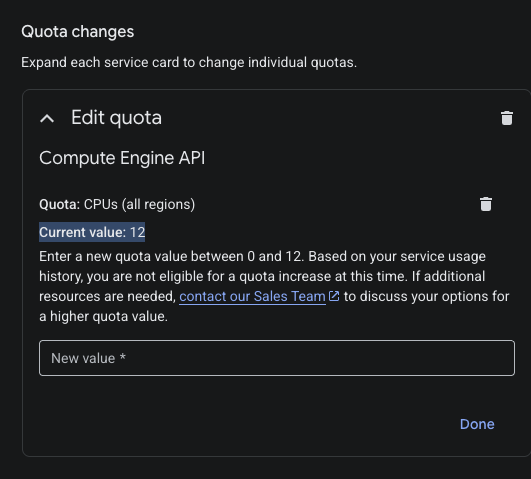

Why New GCP Project? CPU Quota 12 vCPU limit — Plan A (10.75 CPU ❌) vs Plan B (8 CPU ✅)
Infrastructure Setup

Created a new GCP project (v2-ppa-dun) to isolate GKE resources from the v1 project and work around the CPU quota constraint. All infrastructure provisioned via Terraform:

Terraform File Resources
vpc.tf New VPC + Subnet (10.50.0.0/16)
gke.tf GKE Autopilot cluster (nodes managed by GKE)
secrets.tf GCP Secret Manager secrets (DB credentials, API keys)
workload-identity.tf GCP SA ↔ K8s SA binding for Secret Manager access

Application deployment managed via Helm chart + ArgoCD GitOps:

  • Helm — Templated K8s manifests for frontend (Nginx), backend (FastAPI), Ingress, SSL, and secrets
  • ArgoCD — Watches the Helm chart repo. Git push triggers automatic sync and pod redeployment
  • External Secrets Operator — Syncs GCP Secret Manager → K8s Secrets via Workload Identity (no credentials in Git)
  • GKE Ingress — Global LB with Google-managed SSL certificate for ppa-dun.site
